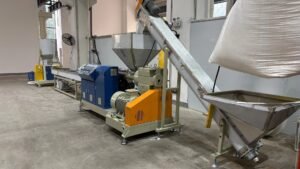

AFJ80 Plastic Recycling and Pelletizing Extrusion Line for ABS, PS and PP Scrap

The AFJ80 Plastic Recycling and Pelletizing Extrusion Line is designed for recycling and processing crushed ABS, PS and PP plastic materials into reusable plastic pellets. With a guaranteed production capacity of 120 kg/h and a maximum target output of 150 kg/h, this system provides a practical solution for small and medium-scale plastic recycling operations.

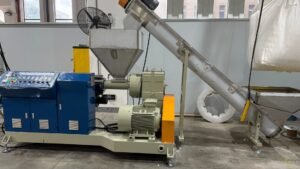

Equipped with an 80mm diameter extrusion screw with a 28:1 L/D ratio and a 45KW main motor controlled by a frequency inverter, the production line supports continuous plastic melting, extrusion, cooling and pelletizing.

The complete system integrates feeding, extrusion, hydraulic screen changing, water cooling, air drying, pelletizing and pneumatic conveying, providing an integrated solution for recycled plastic pellet production.

Key Features and Advantages

1. Stable Extrusion Performance

• 80mm diameter extrusion screw
• L/D ratio: 28:1
• 45KW main motor with frequency inverter control
• Nitrided steel screw and barrel
• Stainless steel feeding hopper with magnetic separator



2. Efficient Feeding System

• 2.2KW feeding motor
• Potentiometer speed control
• 201 stainless steel construction
• Protective screen at the feeding inlet to help prevent material blockage



3. Hydraulic Screen Changing System

• 1.5KW hydraulic power unit
• 4.5mm screen plate holes
• Designed to facilitate screen replacement and filtration during extrusion

4. Cooling and Drying System

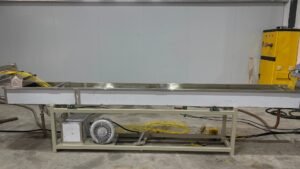

• 4-meter stainless steel cooling water tank with filter screen
• 2.2KW air drying unit
• 304 stainless steel water suction inlet
• Equipped with a water collection hopper and mesh screen

5. High-Efficiency Pelletizing System

• 3.7KW pelletizing motor with frequency inverter control
• 25 tungsten carbide cutting blades
• Sealing rubber strips to help reduce noise and material leakage

6. Pneumatic Conveying and Storage

• 2.2KW pneumatic conveying system
• 300kg storage hopper
• 304 stainless steel construction
• Designed for convenient collection and storage of finished plastic pellets

7. Reliable Electrical Components

The electrical control system uses internationally recognized components:

• ABB frequency inverters
• Omron temperature controllers
• Schneider AC contactors

Applicable Materials

This AFJ80 recycling extrusion line is suitable for processing:

• ABS plastic scrap
• PS plastic scrap
• PP plastic scrap

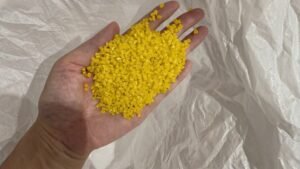

The system is designed to convert crushed plastic materials into reusable recycled plastic pellets for subsequent manufacturing processes.

Technical Specifications

Customized Machine Layout and Installation Planning

A detailed machine layout drawing can be provided before production, including:

• Overall equipment dimensions and installation layout
• Cooling water inlet and outlet positions
• Electrical control cabinet wiring layout
• Recommended cable specifications

This helps customers prepare their workshop space, utilities and electrical connections before equipment installation.

Why Choose YAOAN?

YAOAN specializes in plastic extrusion and recycling machinery, providing customized production line solutions for different plastic materials and manufacturing requirements.

From material feeding and extrusion to cooling, pelletizing and finished pellet collection, we provide integrated equipment solutions to support efficient plastic recycling operations.

Contact us with your raw material details and production requirements to discuss the AFJ80 plastic recycling and pelletizing extrusion line.
